Internal Distributor Design:
It can be said that the design of internal distributors is 40% engineering and 60% "Black Magic".
The engineering principals for pressure drop vs velocity head are well documented.. However, the "Black Magic" element consists of such things as:
The engineering principals for pressure drop vs velocity head are well documented.. However, the "Black Magic" element consists of such things as:
- Syle of distributor should be used - Hub radial or Header Lateral
- Number of holes for adequate flow distribution
- Drilling pattern for holes
- Type of distributor support system

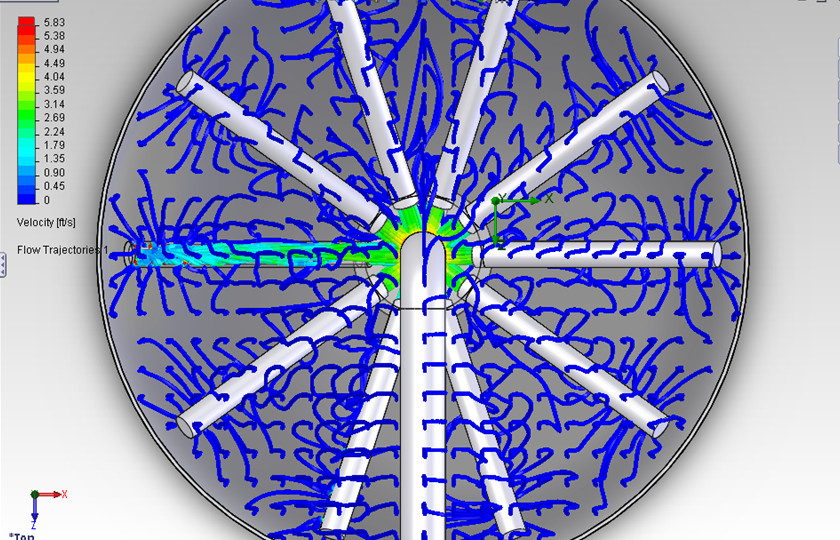

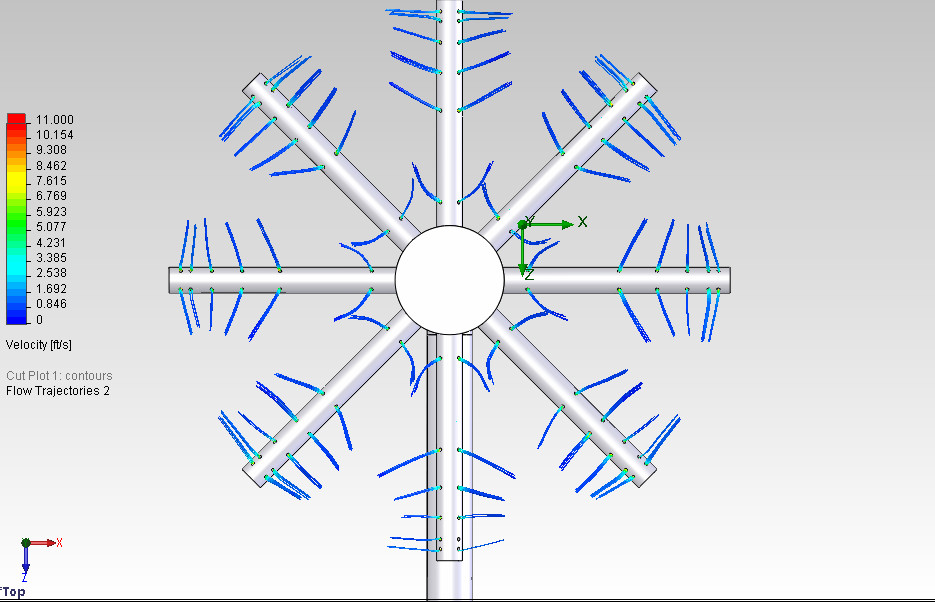

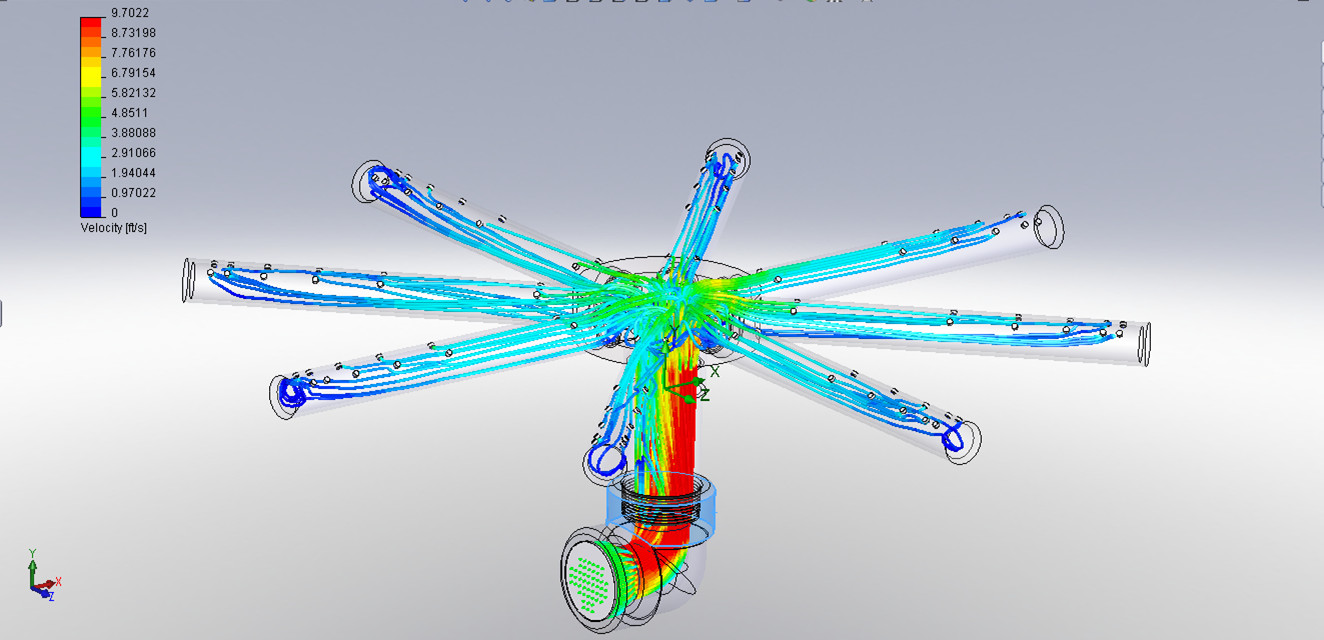

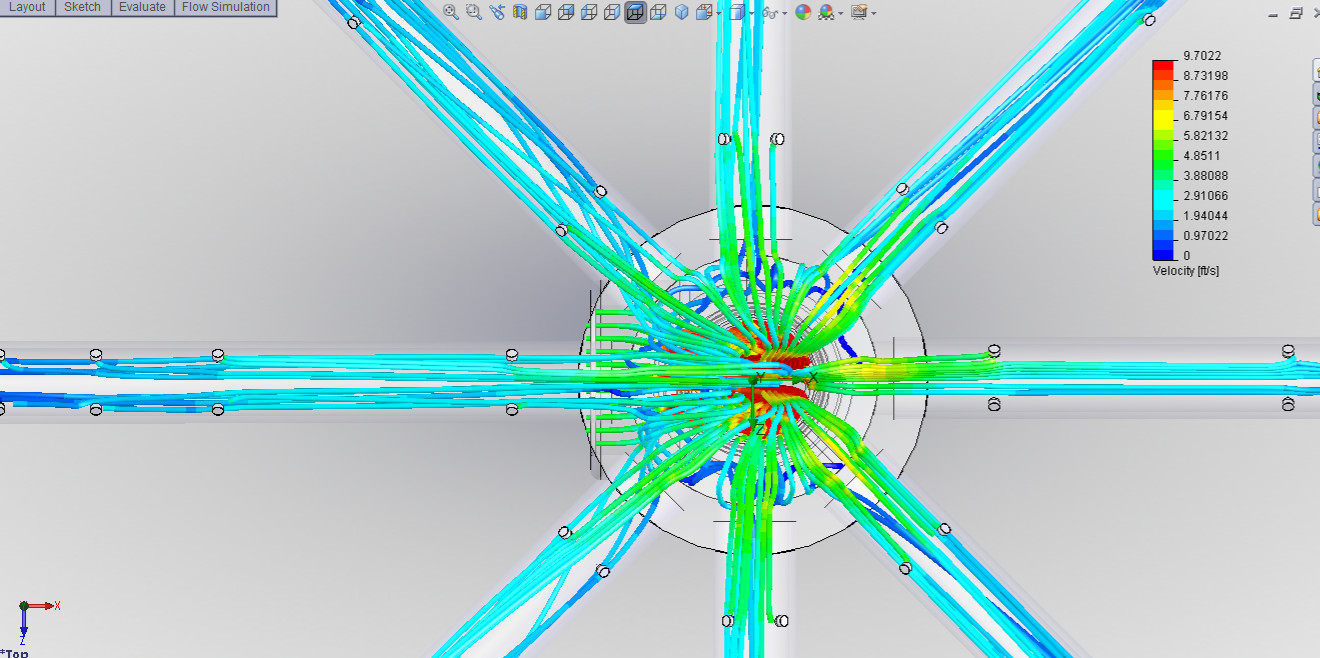

We have over 30 years experience in the engineering and design of distributrions systems for various types of water treatment equipment. We can also incorporate CFD to analyze your unique application. CFD is a useful tool to easily spot problem areas.
Click to enlarge
